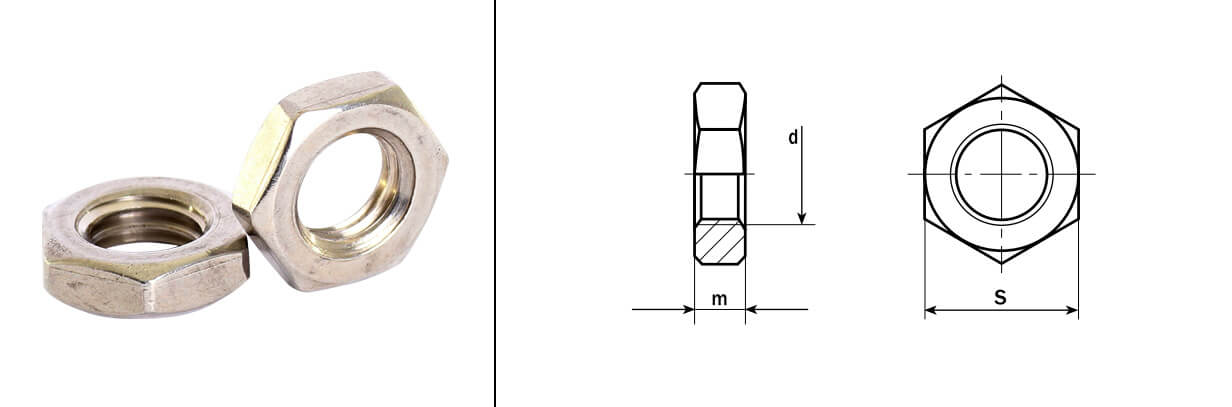

HEX THIN NUTS

Hexagon-thin-nuts
d M8 M8x1 M10 M10x1 M10x1,25 M12
P 1,25 1 1,5 1 1,25 1,75
m (nom.) 5 5 6 6 6 7
s (nom.) 13 13 17/16* 17/16* 17/16* 17/16*
Peso/Weight 1000 ud. kg
4,000 4,000 8,600 8,600 8,600 12,10
d M12x1,25 M12x1,5 M14 M14x1,5 M16 M16x1,5
P 1,25 1,5 2 1,5 2 1,5
m (nom.) 7 7 8 8 8 8
s (nom.) 19/18* 19/18* 22/21* 22/21* 24 24
Peso/Weight 1000 ud. kg
12,10 12,10 18,20 18,20 20,10 20,10
d M18 M18x1,5 M18x2 M20 M20x1,5 M20x2
P 2,5 1,5 2 2,5 1,5 2
m (nom.) 9 9 9 9 9 9
s (nom.) 27 27 27 30 30 30
Peso/Weight 1000 ud. kg
29,60 29,60  29,60 36,30 36,30 36,30
d M22 M22x1,5 M22x2 M24 M24x1,5 M24x2
P 2,5 1,5 2 3 1,5 2
m (nom.) 10 10 10 10 10 10
s (nom.) 32/34* 32/34* 32/34* 36 36 36
Peso/Weight 1000 ud. kg
43,80 43,80 43,80 58,00 58,00 58,00
GRADES:
5 8 10 A2 A4
