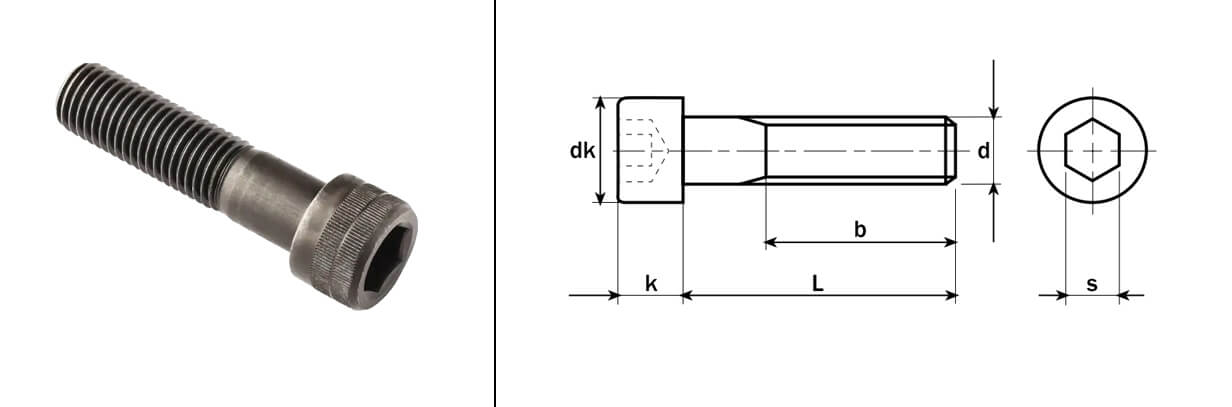

HEX SOCKET HEAD CAP SCREWS

Nom. Dia. (d)		M8	M10		M12		M14		M16		M18		M20		M22
Thread Pitch		1.25	1.5		1.75		2		2		2.5		2.5		2.5
Thread Length (b)		28	32		36		40		44		48		52		56
dk	Max.	13	16		18		21		24		27		30		33
K	Max.	8	10		12		14		16		18		20		22
s	Nominal	6	8		10		12		14		14		17		17
L		WEIGHT IN KG/1000 PCS
12		10.90
16		12.10		20.90
20		13.40		22.90		32.10
25		15.00		25.40		35.70		48.00		71.30
30		16.90		27.90		39.30		53.00		77.80		111.00		128.00
35		18.90		30.40		42.90		58.00		84.40		120.00		139.00		211.00
40		20.90		32.90		46.50		63.00		91.00		129.00		150.00		224.00
45		22.90		36.10		50.10		68.00		97.60		138.00		161.00		237.00
50		24.90		39.30		54.50		73.00		106.00		147.00		172.00		250.00
55		26.90		42.50		58.90		78.00		114.00		156.00		183.00		263.00
60		28.90		45.70		63.40		84.00		122.00		165.00		194.00		276.00
65		31.00		48.90		67.80		90.00		130.00		174.00		205.00		291.00
70		33.00		52.10		71.30		96.00		138.00		183.00		216.00		306.00
80		37.00		58.50		80.20		108.00		154.00		203.00		241.00		336.00
90				64.90		89.10		120.00		170.00		243.00		266.00		366.00
100				71.20		98.00		132.00		186.00		263.00		291.00		396.00
110						107.0		144.00		202.00		283.00		316.00		426.00
120						116.0		156.00		218.00		303.00		341.00		456.00
130								168.00		234.00		323.00		366.00		486.00
140								180.00		250.00		343.00		391.00		516.00
150										266.00		353.00		416.00		546.00
160										282.00		403.00		441.00		576.00
180														491.00		636.00
200														541.00		696.00
220																756.00
