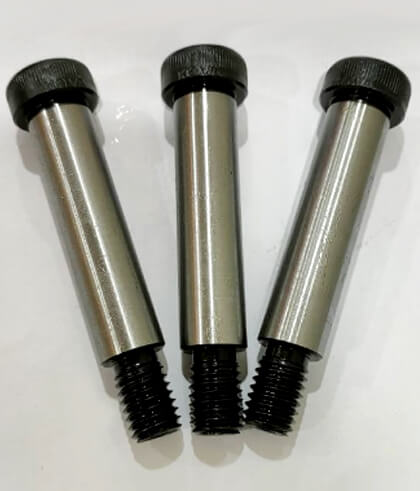

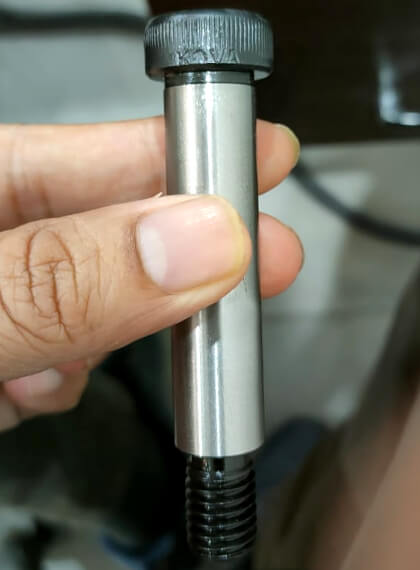

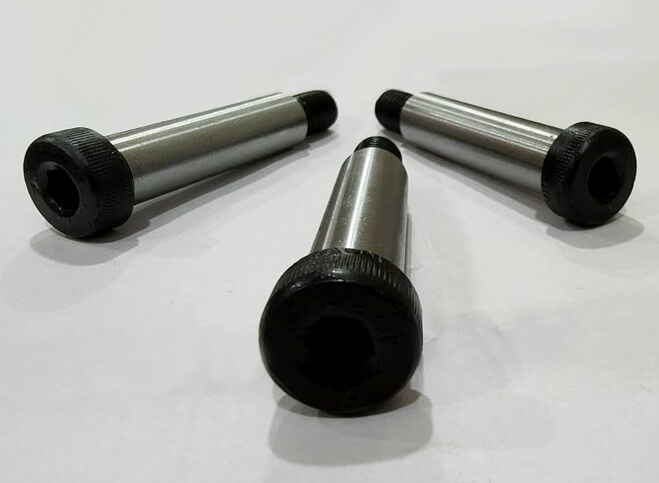

SOCKET HEAD SHOULDER SCREW

DIN ISO 7379

DIN ISO 7379 Socket head shoulder screws from KOVA Fasteners are used in applications which require a decent tensile strength. They are used in the designing of shearing components and machines whose components require the space and ability to swing, oscillate or pivot. They are also used in punch and die applications. These screws are pressure and heat treated to support shear loads like stripper plates and printing presses.

The dimensional specifications of these screws are denoted by their shoulder diameter. The shoulder diameter comes with a default length and thread diameter. The thread diameter is one size smaller than the shoulder length. We have used precision design technology to control the critical dimensions of the under head bearing surface and its radius. The run-out thread section and its profile are also designed meticulously. Such efficient production methods make sure the quality of the screws is unsurpassed, making the structure built with it, sturdy. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.

DIMENSIONAL STANDARDS:
ISO 7379, DIN 9841, BS 4168

SIZE RANGE:
Metric: M6 to M24

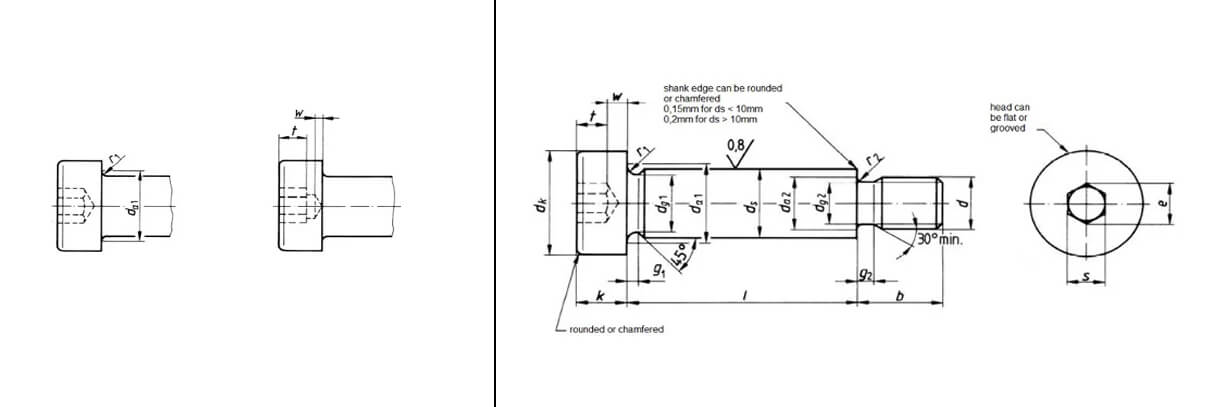

DIN ISO 7379 – HEXAGON SOCKET SHOULDER SCREW

DIN ISO 7379-2
D
P
DS NOM
B MAX
DK MAX (PLAIN HEAD)
DG1 MIN
DG2 MAX
K MAX
K MIN
G1 MAX
G2 MAX
S NOM
E MIN
T MIN
W MIN
M 5
0.8
6.5
9.75
10
5.92
3.86
4.5
4.32
2.5
2
3
3.44
2.4
1
M 6
1
8
11.25
13
7.42
4.58
5.5
5.32
2.5
2.5
4
4.58
3.3
1.15
M 8
1.25
10
13.25
16
9.42
6.25
7
6.78
2.5
3.1
5
5.72
4.2
1.6
M 10
1.5
13
16.4
18
12.42
7.91
9
8.78
2.5
3.7
6
6.86
4.9
1.8
M 12
1.75
16
18.4
24
15.42
9.57
11
10.73
2.5
4.4
8
9.15
6.6
2
M 16
2
20
22.4
30
19.42
13.33
14
13.73
2.5
5
10
11.43
8.8
3.2
M 20
2.5
25
27.4
36
24.42
16.57
16
15.73
3
6.3
12
13.72
10
3.25

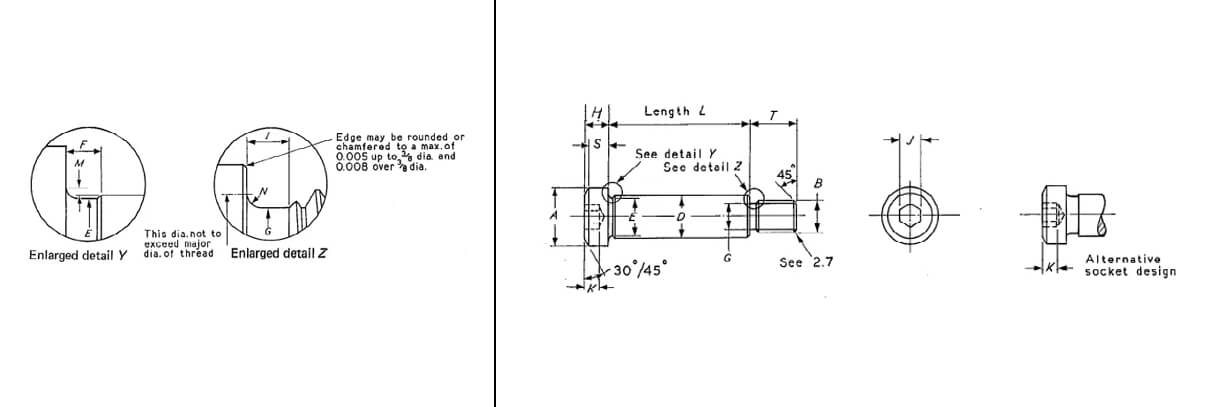

BS2470 – HEXAGON SOCKET HEAD SHOULDER SCREW WITH UNIFIED & BSW/BSF THREADS

DIN ISO 7379-1
NOMINAL SIZE D A H S B T J K
Shoulder diameter Head diameter Head height Head side height Nominal thread size Thread length Hexagon socket size* Key engage-ment
Max. Min. Max. Min. Max. Min. Min. Max. Min. Nom. Min.
1/4 0.2480 0.2460 0.375 0.375 0.188 0.182 0.157 No 10 or 3/16 0.375 0.355 1/8 0.094
5/16 0.3105 0.3085 0.438 0.419 0.219 0.213 0.183 1/4 0.438 0.418 5/32 0.117
3/8 0.3730 0.3710 0.563 0.543 0.250 0.244 0.209 5/16 0.500 0.480 3/16 0.141
1/2 0.4980 0.4960 0.750 0.729 0.313 0.306 0.262 3/8 0.625 0.595 1/4 0.188
5/8 0.6230 0.6210 0.875 0.853 0.375 0.368 0.315 1/2 0.750 0.720 5/16 0.234
3/4 0.7480 0.7460 1.000 0.977 0.500 0.492 0.421 5/8 0.875 0.845 3/8 0.281

ASME-B18.3- HEXAGON SOCKET HEAD SHOULDER SCREW UNIFIED THREADS

DIN ISO 7379
NOMINAL SIZE (BASIC SHOULDER DIAMETER) “SHOULDER DIAMETER, D[NOTE (1)] HEAD DIAMETER, A [NOTE(8)] HEAD HEIGHT, H MAX CHAMFER OR RADIUS, C NOMINAL HEXAGON SOCKET SIZE, J [NOTE (9)] MIN. KEY ENGAGEMENT T MAX FILLET TRANSITION DIAMETER, M [NOTE (6)] MIN. HEAD FILLEY RADIUS, R
Max. Min. Max. Min. Max. Min.
1/4 (0.250) 0.2480 0.2460 0.375 0.357 0.188 0.177 0.020 1/8 0.125 0.094 0.276 0.009
5/16 (0.312) 0.3105 0.3085 0.438 0.419 0.219 0.209 0.026 5/32 0.156 0.117 0.345 0.012
3/8 (0.375) 0.3730 0.3710 0.562 0.543 0.250 0.240 0.031 3/16 0.188 0.141 0.413 0.015
1/2 (0.500) 0.4980 0.4960 0.750 0.729 0.312 0.302 0.040 1/4 0.250 0.188 0.550 0.020
5/8 (0.625) 0.6230 0.6210 0.875 0.853 0.375 0.365 0.050 5/16 0.312 0.234 0.687 0.024
3/4 (0.750) 0.7480 0.7460 1.000 0.977 0.500 0.490 0.069 3/8 0.375 0.281 0.826 0.030
1 (1.000) 0.9980 0.9960 1.312 1.287 0.625 0.610 0.083 1/2 0.500 0.375 1.098 0.040
1 1/4 (1.250) 1.2480 1.2460 1.750 1.723 0.750 0.375 0.102 5/8 0.625 0.469 1.368 0.050
1 1/2 (1.500) 1.4980 1.4960 2.125 2.095 1.000 0.980 0.138 7/8 0.875 0.656 1.638 0.060
1 3/4 (1.750) 1.7480 1.7460 2.375 2.345 1.125 1.105 0.157 1 1.000 0.750 1.908 0.070
2 (2.000) 1.9980 1.9960 2.750 2.720 1.250 1.230 0.176 1 1/4 1.250 0.937 2.178 0.080
