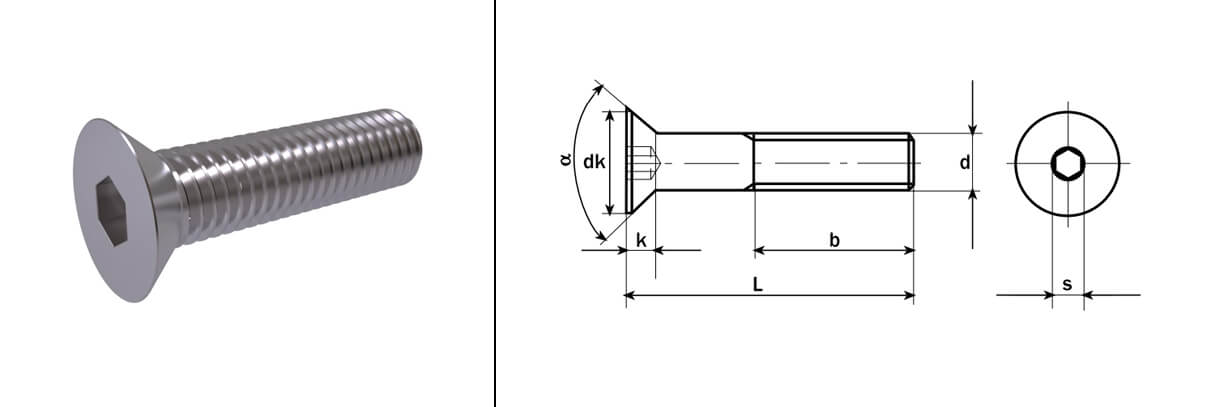

HEX SOCKET COUNTERSUNK HEAD SCREWS

Nom. Dia. (d)		M6	M8	M10	M12	M16	M20
Thread Pitch		1	1.25	1.5	1.75	2	2.5
Thread Length (b)		18	22	26	30	38	46
dk	Max.	12	16	20	24	30	36
K	Max.	3.3	4.4	5.5	6.5	7.5	8.5
α		90°	90°	90°	90°	90°	90°
s	Nominal	4	5	6	8	10	12
L		WEIGHT IN KG/1000 PCS
10		2.70	5.47
12		3.05	6.10	10.10
16		3.76	7.35	12.10
20		4.46	7.60	14.10	21.20
25		5.34	10.20	16.60	24.80
30		6.22	11.70	19.10	28.50	51.80
35		7.10	13.30	21.60	32.10	58.40	91.40
40		8.83	14.80	24.10	35.70	65.10	102.00
50		11.00	19.90	30.10	43.00	78.40	123.00
60			24.80	35.70	54.00	91.70	143.00
70				41.20	62.90	111.00	164.00
80						127.00	200.00
90						143.00	226.00
100							253.00
