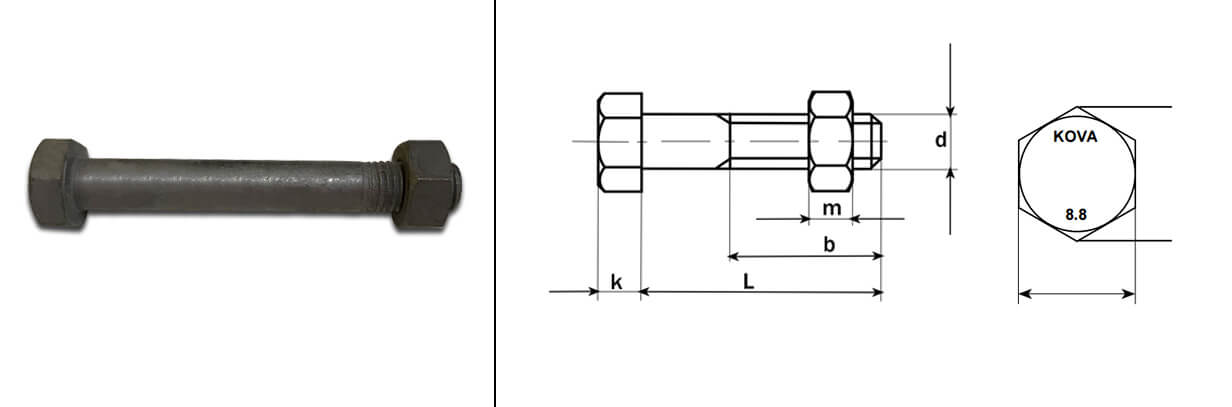

HEX HEAD BOLTS WITH NUT

Din 7990
d M12 M16 M20 M22 M24 M27 M30
P 1.75 2 2.5 2.5 3 3 3.5
b 19.5 23 26 58 29.5 32.5 35
k 8 10 13 14 15 17 19
m 10 13 16 18 19 22 24
s 19 24 30 32 36 41 46
L WEIGHT IN KG/1000 PCS
30 58.80
35 63.20 119.00
40 67.60 127.00 240.00 284.00
45 72.00 135.00 252.00 299.00 377.00
50 76.40 143.00 264.00 314.00 395.00
55 80.80 151.00 276.00 329.00 413.00
60 85.20 159.00 288.00 344.00 431.00 595.00
65 89.60 167.00 300.00 359.00 449.00 617.00
70 94.00 175.00 312.00 374.00 467.00 639.00
75 98.40 183.00 324.00 389.00 485.00 661.00
80 102.00 191.00 336.00 404.00 503.00 683.00 902.00
85 106.00 199.00 348.00 419.00 521.00 705.00 930.00
90 110.00 207.00 360.00 434.00 539.00 727.00 958.00
95 114.00 215.00 372.00 449.00 557.00 749.00 986.00
100 118.00 223.00 384.00 464.00 575.00 771.00 1014.0
105 122.00 231.00 396.00 479.00 593.00 793.00 1042.0
110 126.00 239.00 408.00 494.00 611.00 815.00 1070.0
115 130.00 247.00 420.00 509.00 629.00 837.00 1098.0
120 134.00 255.00 432.00 524.00 647.00 859.00 1126.0
125 263.00 444.00 539.00 665.00 881.00 1154.0
130 271.00 456.00 554.00 683.00 903.00 1182.0
135 279.00 468.00 569.00 701.00 925.00 1210.0
140 287.00 480.00 584.00 719.00 947.00 1238.0
145 295.00 492.00 599.00 737.00 969.00 1266.0
150 303.00 504.00 614.00 755.00 991.00 1294.0
155 516.00 629.00 773.00 1013.0 1322.0
160 528.00 644.00 791.00 1035.0 1350.0
165 540.00 659.00 809.00 1057.0 1378.0
170 552.00 674.00 827.00 1079.0 1406.0
175 564.00 689.00 845.00 1101.0 1434.0
180 704.00 863.00 1123.0 1462.0
185 719.00 881.00 1145.0 1490.0
190 734.00 899.00 1167.0 1518.0
195 749.00 917.00 1189.0 1546.0
200 764.00 935.00 1211.0 1574.0
