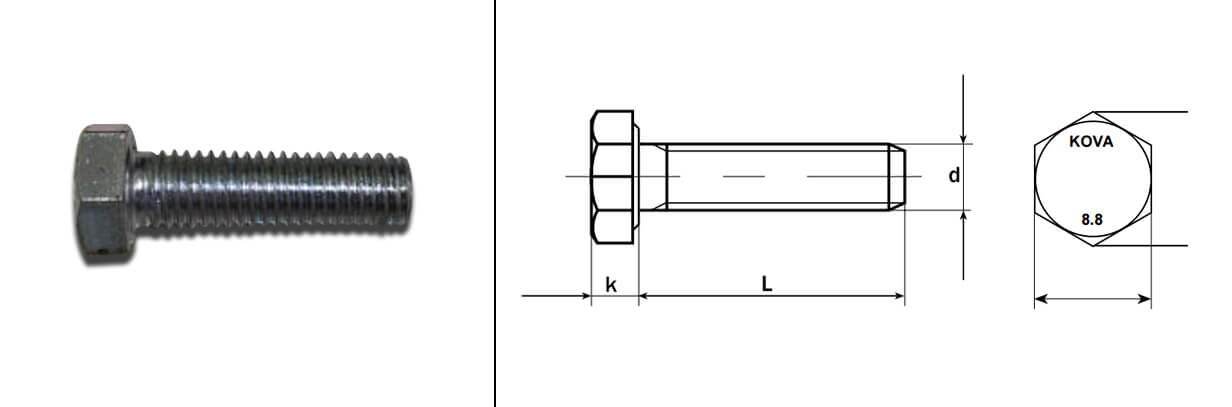

HEX HEAD BOLT, FULLY THREADED
| Nom. Dia. (d) | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | (M 18) | M 20 | |
| Thread Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | |
| K | Nominal | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 |
| Min. | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | |
| Max. | 4.15 | 5.45 | 6.56 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | |
| s | Max. | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 |
| Min. | 9.78 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | |
| L | WEIGHT IN KG/1000 PCS | ||||||||
| 10 | 4.08 | 9.10 | 16.20 | 23.30 | 38.00 | ||||
| 12 | 4.42 | 9.80 | 17.20 | 25.00 | 40.00 | 52.90 | |||
| 14 | 4.76 | 10.50 | 18.20 | 26.40 | 42.00 | 55.60 | |||
| 16 | 5.11 | 11.10 | 19.20 | 27.70 | 44.00 | 58.30 | 82.00 | 105.0 | |
| 18 | 5.45 | 11.70 | 20.20 | 29.10 | 46.00 | 60.90 | 84.90 | 110.0 | |
| 20 | 5.80 | 12.30 | 21.20 | 31.00 | 48.00 | 63.50 | 87.20 | 114.0 | |
| 22 | 6.15 | 12.90 | 22.20 | 33.00 | 50.00 | 66.20 | 92.20 | 119.0 | |
| 25 | 6.65 | 13.90 | 23.70 | 34.10 | 53.00 | 70.20 | 95.80 | 124.0 | |
| 28 | 7.15 | 14.90 | 25.20 | 36.20 | 55.90 | 74.20 | 100.00 | 129.0 | |
| 30 | 7.51 | 15.50 | 26.20 | 37.70 | 57.90 | 76.90 | 104.00 | 134.0 | |
| 35 | 8.37 | 17.10 | 28.70 | 41.30 | 62.90 | 83.50 | 112.00 | 145.0 | |
| 40 | 9.23 | 18.70 | 31.20 | 44.90 | 67.90 | 90.20 | 120.00 | 155.0 | |
| 45 | 10.10 | 20.30 | 33.70 | 48.50 | 72.90 | 97.10 | 128.00 | 165.0 | |
| 50 | 11.00 | 21.80 | 36.20 | 52.00 | 77.90 | 103.00 | 136.00 | 176.0 | |
| 55 | 11.90 | 23.40 | 38.70 | 55.60 | 82.80 | 110.00 | 145.00 | 186.0 | |
| 60 | 12.70 | 25.00 | 41.30 | 58.20 | 87.80 | 117.00 | 153.00 | 196.0 | |
| 65 | 13.60 | 26.60 | 43.80 | 62.80 | 92.80 | 123.00 | 161.00 | 207.0 | |
| 70 | 14.40 | 28.20 | 46.30 | 66.40 | 97.90 | 130.00 | 169.00 | 217.0 | |
| 75 | 15.30 | 29.80 | 48.80 | 70.00 | 102.00 | 137.00 | 177.00 | 227.0 | |
| 80 | 16.20 | 31.40 | 51.30 | 73.60 | 107.00 | 144.00 | 186.00 | 238.0 | |
| 85 | 33.00 | 53.80 | 77.20 | 112.00 | 150.00 | 194.00 | 247.0 | ||
| 90 | 34.60 | 56.30 | 80.80 | 117.00 | 157.00 | 202.00 | 258.0 | ||
| 95 | 35.20 | 59.80 | 84.40 | 122.00 | 164.00 | 210.00 | 268.0 | ||
| 100 | 37.70 | 61.30 | 88.00 | 127.00 | 170.00 | 218.00 | 279.0 | ||
| 110 | 40.90 | 66.40 | 95.20 | 137.00 | 184.00 | 235.00 | 300.0 | ||
| 120 | 71.40 | 102.00 | 147.00 | 197.00 | 251.00 | 320.0 | |||
| 130 | 76.40 | 109.00 | 157.00 | 210.00 | 268.00 | 340.0 | |||
| 140 | 81.40 | 116.00 | 167.00 | 224.00 | 284.00 | 361.0 | |||
| 150 | 86.40 | 123.00 | 177.00 | 237.00 | 300.00 | 381.0 | |||
| 160 | 316.00 | 402.0 | |||||||
| 170 | 332.00 | 422.0 | |||||||
| 180 | 348.00 | 442.0 | |||||||
| 190 | 364.00 | 462.0 | |||||||
| 200 | 380.00 | 484.0 | |||||||
