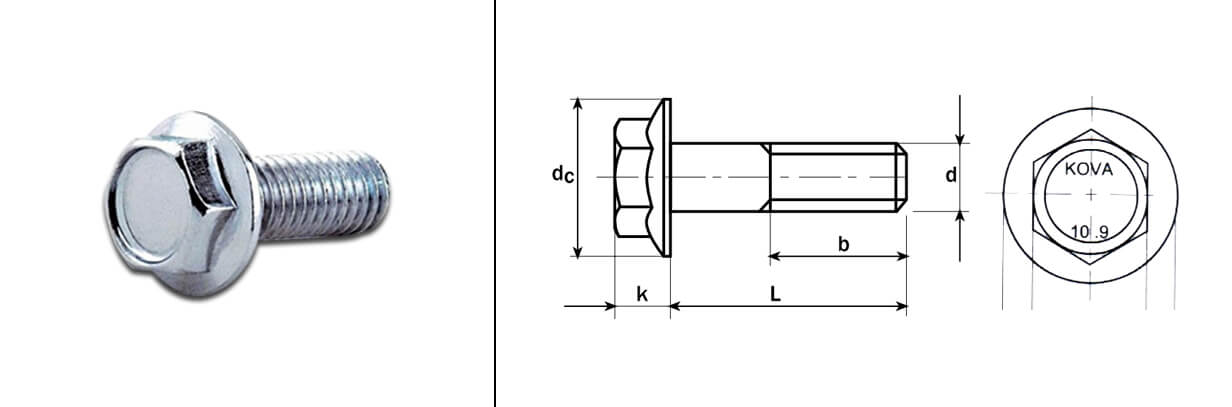

HEX FLANGE BOLTS

DIN-6921
Nom. Dia. (d) M6 M8 M10 M12 M14 M16 M20
Thread Pitch 1 1.25 1.5 1.75 2 2 2.5
Thread Length (b) L < 125mm 18 22 26 30 34 38 46
125-200mm 28 32 36 40 44 52
L > 200mm 45 49 53 57 65
ds Min. 6 8 10 12 14 16 20
Max. 5.82 7.78 9.78 11.73 13.73 15.73 19.67
K Max. 6.6 8.1 9.2 11.5 12.8 14.4 17.1
Flange Diameter 14.2 18 22.3 26.6 30.5 35 43
e Min. 10.95 14.26 16.5 17.62 19.86 23.15 29.87
s Min. 9.78 12.73 14.73 15.73 17.73 20.67 26.67
Max. 10 13 15 16 18 21 27
