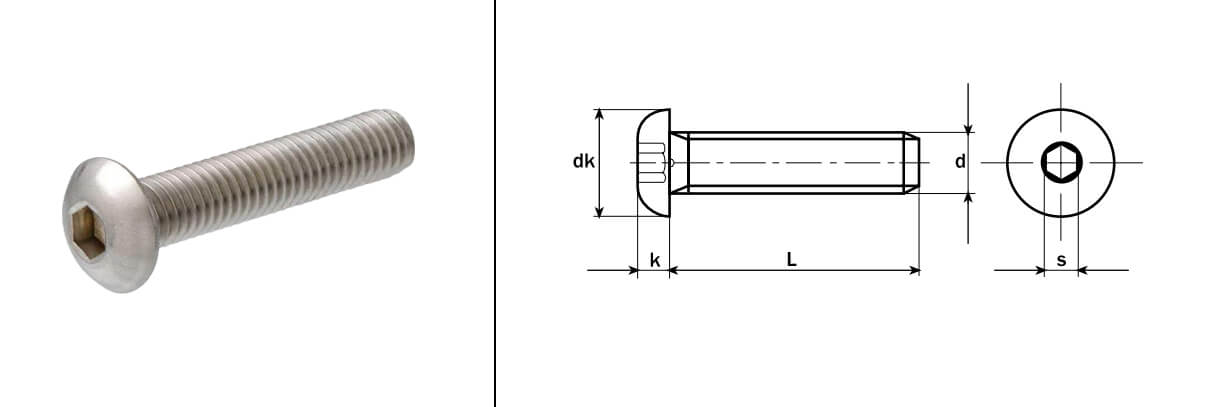

HEX SOCKET BUTTON HEAD SCREWS

DIN/ISO 7380

d	M3	M4	M5	M6	M8	M10	M12	M16
P	0,5	0,7	0,8	1	1,25	1,5	1,75	2
Dk (max)	5,7	7,6	9,5	10,5	14	17,25	21	28
k (max)	1,65	2,2	2,75	3,3	4,4	5,5	6,6	8,8
s	2	2,5	3	4	5	6	8	10

L\d:
6	X	X	X	X
8	X	X	X	X	X
10	X	X	X	X	X
12	X	X	X	X	X	X
16	X	X	X	X	X	X	X
20	X	X	X	X	X	X	X
25	X	X	X	X	X	X	X
30	X	X	X	X	X	X	X	X
35		X	X	X	X	X	X	X
40		X	X	X	X	X	X	X
45			X	X	X	X	X	X
50			X	X	X	X	X
55				X	X	X	X
60		X	X	X	X	X	X	X
70			X	X	X	X	X	X
80					X	X	X	X
90					X	X	X
100					X	X	X
110							X
120							X
