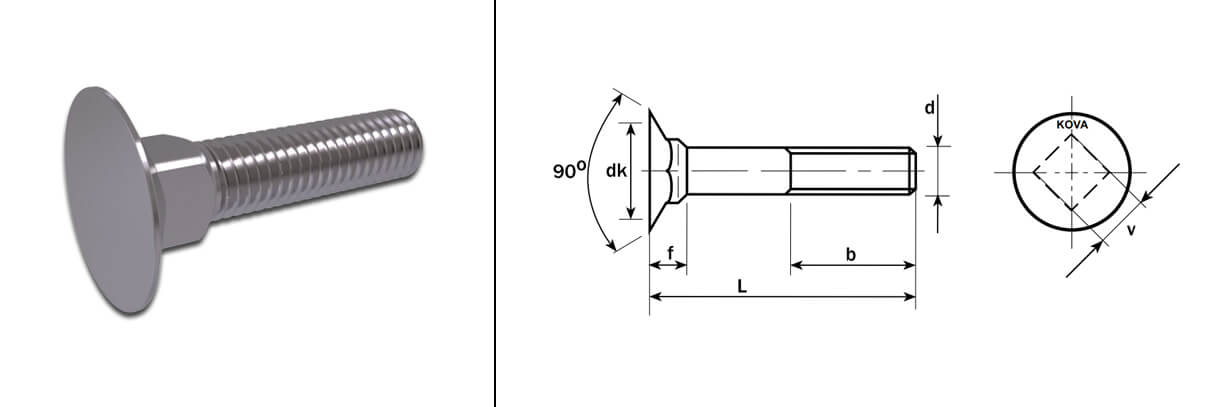

FLAT COUNTERSUNK SQUARE NECK BOLTS

DIN-608
d M10 M12
p____ 1,5 1,75
b_____ 26 30
dk (max) f (max) 19,65 24,65
V (max) 8,45 11,05
10,58 12,7
Ld:/Weight 1000 ud. kg
25 18,20
30 20,70 33,00
35 23,02 36,60
40 25,70 40,20
45 28,80 43,80
50 31,90 48,20
